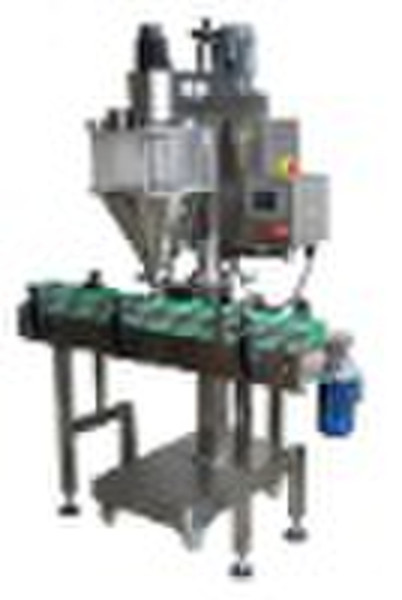

DCS-2A-1 Automatic Auger Filling Machine

Main Specification Metering Mode Auger rotation filling Packaging Weight 1 500 g (The screw attachment it to be changed) Packaging Accuracy Package weight≤ 100 g, with an error≤±2% 100 500 g, with an error≤±1% Filling Rate 15-60 bottles/min Power Supply 3P AC208-415V 50-60Hz Total Weight 1.2KW Air Supply 6kg/cm2 0.05m3/min Total Weight 160 kg Overall Dimensions 1500×760×1850mm Hopper Volume 35L Descriptive abstract: This powder packing Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on. Characteristics: The surface of whole machine is made by stainless steel material. Knockdown transparent hopper, which could be washed without toolings. Servo motor driving screw PLC & Touch screen control system Save the parameter of each product to later use. 7 recipes of magistral fomula save at the most. Fit for lots of material range from fine-powder to coarse-granule, if change the screw attachment. Dust- collector set on dust material situation to absorb dust spout out. Optional devices: Leakpoof acentric devive Pneumatic flat Dust collecting cover Level split hopper Can lifting device Online weighing system
