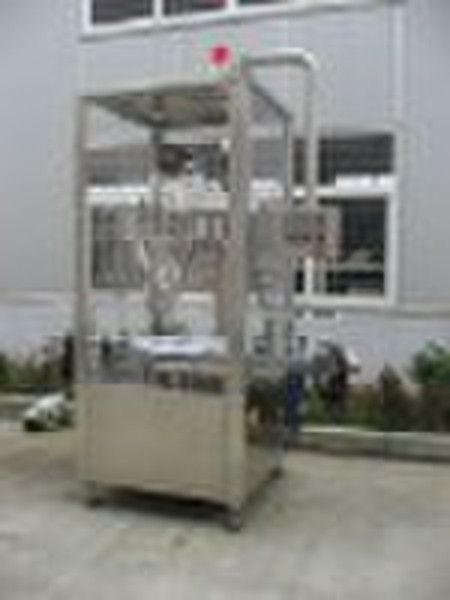

DCS-2B-2 Automatic auger filling Machine

Metering Mode Auger rotation filling traced by weighing feedback Container Size φ30 160mm H 50 350mm Filling Weight 10 2000g Packaging Accuracy package weight < 100g,with an error < 2% 100 500g,with an error<1%, 500g,with an error < 0.5% Packaging Rate 20 50 cans per minute Power Supply 3P / 220V 415V Total Power 2KW Total Weight 500Kg Overall Dimensions 2200×1750×2350mm Hopper Volume 45L Automatic botttle packing machine, Use bottle or canister to configure the automatic filling motor, Excluding motor and hopper head is made by stainless steel. Suspending hopper could be washed without toolings. Servo motor driving screw. Weighing feedback and tracing weighing type get rid of the shortage of variable packaged weight for various proportion of different materials. Alarming when weight tolerance is paranormal. Automatically eliminating unqualified products through the elimination installations.To make each products be qualified and omit separate-selecting machine of tailed working procedure. LCD(in Chinese or English) display show working situations and operating command, simply visual supervisory. Save the parameter of each product to later use. 10 recipes of magistral fomula save at the most. Changing screw parts and be suitable to super-scrappy powder and granule various materials. Tray can and dust collector could make the filling mouth and container mouth be sealed during filling, protect the circumstance from polluting.
