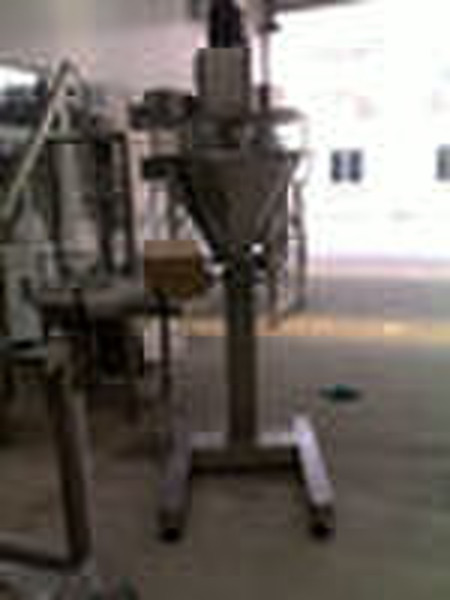

DCS-3B-503 Auger Filler

DCS-3B Auger Filler Main Specification Model DCS-3B-101 DCS-3B-503 DCS-3B-603 Hopper Knockdown transparent 45L 60L (large) Unlock transparent 50L 65L (large) Unlock transparent 60L 75L (large) configure With Electronic cabinet With Electronic cabinet & Control cabinet (PLC & Touch Screen) Filling Weight 10 2000g 10 5000g (large) 10 3000g 10 5000g (large) 10g 5kg 10g 10kg (large) Filling Accuracy 10 500g,with an error less than1%,more than 500g,with an error more than 0.5% Filling Rate 40 120 times/min 40 120 times/min 40 120 times/min Power Supply 3P AC208 415V 50-60Hz 3P AC208 415V 50-60Hz 3P / 220V 415V Total Power 1.9kw 2.4kw (large) 1.9kw 2.4kw (large) 2.4kw Total Weight 200kg 220kg 250kg Overall Dimensions 1060×600×1100mm 1060×650×1100mm 1125×700×1200mm Descriptive abstract: This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on. Characteristics: The hopper which could be washed without toolings. Servo motor driving screw is characteristics of no easy abrasion, high-precision orientation, setup rotate speed, stable performance The surface of whole machine is made by stainless steel material except of motor. Include handwheel of adjustable height. Fit for lots of material range from fine-powder to granule, if change the screw attachment. Optional devices: Electric control box PLC,touch screen control box Pneumatic flap Nitrogen gas flushing Better level sensor
