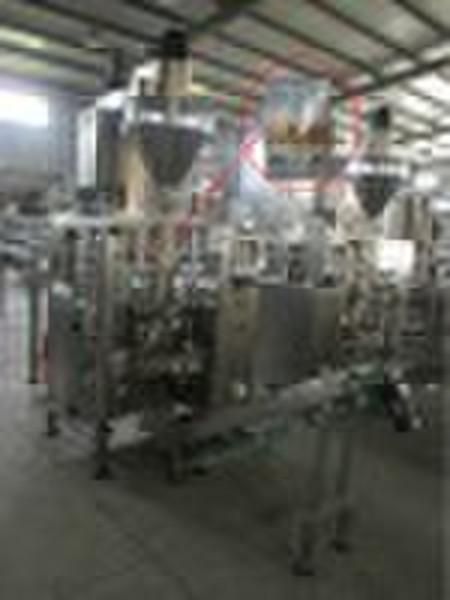

Vertical Form Fill Seal Packaging machine

The product can be used in, powdery and granulated material. like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on. Model DCS-3B+JW600 DCS-3B+JW800 Packaging Speed 25-70 bags/min 25-60 bags/min Bagging size W 70-250mm L 100-350mm W 100-300mm L 100-400mm Packaging Accuracy Filling weight < 100g, with an error<2%100 500g,with an error<1% >500g,with an error>0.5%Power Supply 3P / 220V 415V 3P / 220V 415V Total Power 4.9KW 5.4KW Air Supply 6kg/cm2 2.5 m3/min 6kg/cm2 2.5 m3/min Net Weight 900 kg 1000 kg Dimension(W×L×H) 1430×1200×2700mm 1550×1220×2700mm Hopper Volume 45L 60LThe machine can make the package of pillow or Vertical type and handling package. The packaging machines of JW series already contain more than ten years production history. Machine construction tightly packed, electric and pneumatic components all adopt the famous factory product of all countries, to sure the long-term work stability of machine. The touch-sensitive screen can display each machine state, operation instruction,the state of breakdown and so on. Adopted the Programmable Controller that made in Japan and up to 100 sets of working configurations can be stored in the machine. Engineer can control and adjust customers' machine in the long range. The machine is provided with well-versed AC servo motor technology on the film feed draw belt, resulting in creating smooth operation and higher speed. On-line adjustments of sealing position, cutting position as well as effects can be easily made on the touch-sensitive screen. The automatic temperature controller is used to maintain the working temperature within a deviation of sealing degree centigrade. In addition, a tooth-shaped sealing device is used to ensure the firm sealing. Having the alarming equipment, such as clipping the material, door unclosed, no film and so on.
